Raytron Technical Review RESEARCH ARTICLE WP-01-11

CCA vs Copper: Cost-Effectiveness Analysis

RAYTRON技术团队¹ *

¹RAYTRON集团技术研究中心, 中国

^*Corresponding author

Received: 2025年12月 Accepted: 2026年2月 Published: 2026年3月

DOI: 10.1234/raytron.2026.WP-01-11

Abstract

CCA（CCA）与纯铜的对比是材料选择中的核心Question。本Whitepapers全面比较两种材料的电气性能、机械性能、Weight特性和Cost Effective。我们提供Applications选择指南，帮助工程师在保证性能的前提下优化成本。

Key Findings

Cost Savings 30-50% Material cost reduction compared to solid copper while maintaining acceptable conductivity
Weight Reduction 60% Significant weight savings due to lower density (3.64 g/cm³ vs 8.96 g/cm³)
Conductivity 62-68% IACS Achieves 62-68% of copper's conductivity, suitable for many applications
High-Frequency Performance Equivalent Skin effect at high frequencies makes CCA perform similarly to solid copper

Keywords

CCA;CCA;纯铜;材料对比;Cost Effective;Conductivity

1. 引言

CCA（CCA）作为纯铜的替代材料，在许多Applications中提供显著的成本优势。

2. 电气性能

3. 机械性能

4. Weight特性

CCA的Density仅为纯铜的40%，在Weight敏感Applications中具有显著优势。

5. 成本分析

创建Cost Effective分析图

MEDIA TODO

Figure Fig. 3 Cost Effective分析图

6. Applications选择

7. 结论

CCA在成本敏感、Weight敏感和高频Applications中是纯铜的优秀替代品。

Frequently Asked Questions

What is Copper-Clad Aluminum (CCA)?

CCA is a bimetallic conductor consisting of an aluminum core with a copper outer layer, manufactured through cladding and welding processes. It combines the lightweight properties of aluminum with the conductivity and connectivity advantages of copper.

How does CCA's conductivity compare to pure copper?

CCA typically achieves 62-68% IACS conductivity compared to pure copper's 100% IACS. While lower, this is sufficient for many applications including building wires, coaxial cables, and high-frequency applications where skin effect predominates.

Is CCA suitable for building wiring applications?

Yes, CCA is widely used in building wiring for applications where its conductivity is adequate. It offers significant cost and weight advantages. However, for high-current applications or where maximum conductivity is critical, pure copper may still be preferred.

What are the connection reliability concerns with CCA?

CCA provides better connection reliability than pure aluminum due to its copper surface, which eliminates the oxidation and galvanic corrosion issues associated with aluminum connections. Standard copper connectors can be used with proper installation practices.

Why is CCA particularly effective for high-frequency applications?

At high frequencies, current flows primarily on the conductor surface due to the skin effect. Since CCA has a copper outer layer, it performs equivalently to solid copper in RF applications while offering significant cost and weight advantages.

Figures

创建CCA与纯铜性能雷达图对比

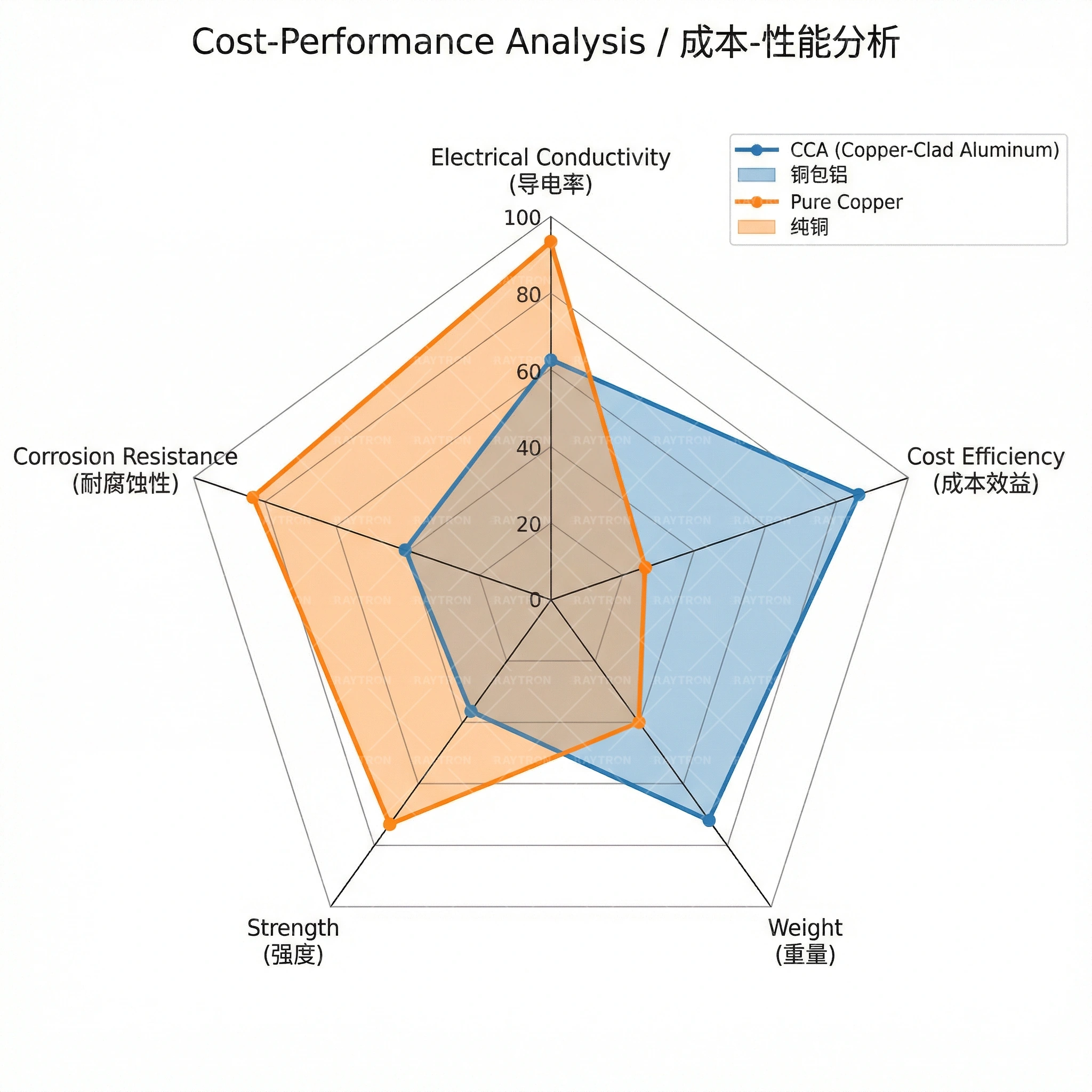

Fig. 1 CCA与纯铜性能雷达图对比

创建Conductivity随温度变化曲线

Fig. 2 Conductivity随温度变化曲线

创建Cost Effective分析图

Fig. 3 Cost Effective分析图

Tables

Table 1 电气Compare Performance

性能	CCA-15%	纯铜
Conductivity (% IACS)	62-68	100
电阻率 (μΩ·cm)	2.5-2.8	1.72
温度系数 (/°C)	0.0040	0.00393

Table 2 机械Compare Performance

性能	CCA-15%	纯铜
Tensile Strength (MPa)	150-200	220-250
延伸率 (%)	15-25	30-45
Density (g/cm³)	3.64	8.96

Table 3 成本对比

因素	CCA	纯铜
材料成本	$0.40/kg当量	$1.00/kg
Weight节省	60%	-
铜材节省	85%	-

Table 4 Applications选择指南

Applications	推荐材料	理由
建筑导线	CCA	Cost Effective
高频电缆	CCA	趋肤效应
大电流母线	纯铜	Conductivity要求
接地导体	CCA/纯铜	视环境而定

References

ASTM International ASTM B566: Copper-Clad Aluminum Wire ASTM (2020)
IEC IEC 62602: Copper-clad aluminum for electrical purposes IEC (2022)
